Power mixed test system
【Target Devices】 Automotive IPD/IPM etc
Power device or module with which are digitally controlled and memory can be measured per system.

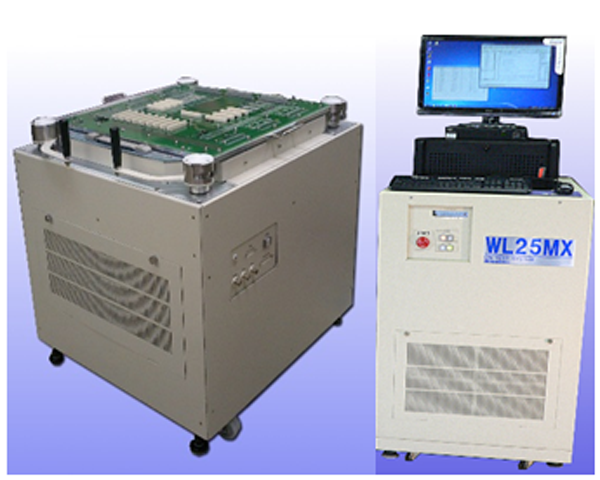

【WL25MXL】
Specifications highlight (Test items)
- Capable of parallel testing
- Analog pin 64V/1.5A 192CH
- Digital pin 50MHz 64CH
- Hi voltage V/I 2000V/20ｍA
- Hi current V/I 60V/10A,30V/30A,16V/100A
- Time、DSP（Audio/Video）
【WL25MXS】
Specifications highlight (Test items)
- Capable of parallel testing
- Analog pin 64V/1.5A 128CH
- Digital pin 50MHz 64CH
- Built-in modules
- Hi voltage V/I 2000V/20ｍA
- Hi current V/I 60V/10A,30V/30A
- Time、DSP（Audio/Video）
